How I learned

to stop worrying

& love the glossary

Daniel Barrio Fierro / Wojciech Baranowski

Our stack:

  • DITA OT
  • <oXygen/> XML
  • easyDITA

+ reveal.js for beautiful HTML slides

Glossaries?

GLOSSARIES?
Aleppo soap

Vegetal oil based soap traditionally produced in the city of Aleppo.

Castile soap

Vegetal oil based soap traditionally produced in the Castilian plains.

Marseille soap

Vegetal oil based soap traditionally produced in the Marseille area.

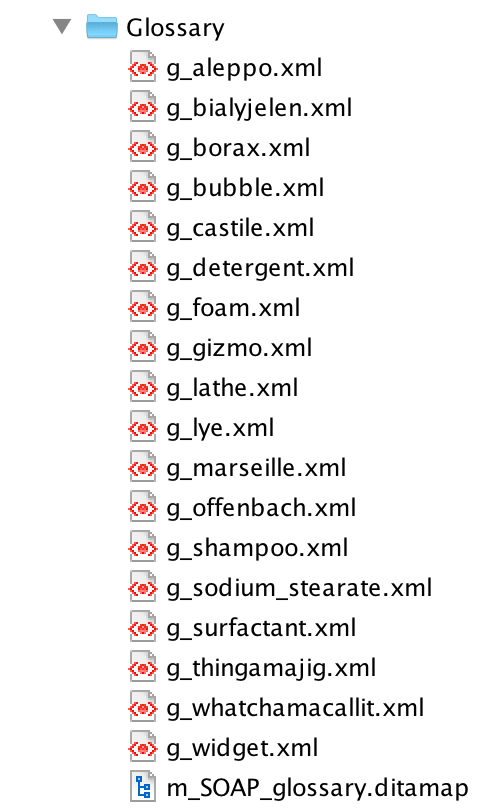

gloss_files

Docs

Doc_progress

Glossary

Doc_progress
Glossentry (term)

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE glossentry PUBLIC "-//OASIS//DTD DITA Glossary//EN" "glossary.dtd">
<glossentry id="g_soap" xml:lang="en-US">
 <glossterm>SOAP! content conference</glossterm>
 <glossdef>SOAP! is the best content conference. Period.</glossdef>
  <glossBody>
   <glossSurfaceForm/>
	<glossAlt>
	 <glossAcronym>SOAP!</glossAcronym>
	</glossAlt>
   </glossBody>
</glossentry>

Glossary map

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE map PUBLIC "-//OASIS//DTD DITA Map//EN" "map.dtd">
<map>
 <title>SOAP glossary</title>
 <keydef keys="g_aleppo" type="glossentry" href="g_aleppo.xml"/>
 <keydef keys="g_bialyjelen" type="glossentry" href="g_bialyjelen.xml"/>
 <keydef keys="g_borax" type="glossentry" href="g_borax.xml"/>
 <keydef keys="g_bubble" type="glossentry" href="g_bubble.xml"/>
 <keydef keys="g_castile" type="glossentry" href="g_castile.xml"/>
 <keydef keys="g_detergent" type="glossentry" href="g_detergent.xml"/>
 <keydef keys="g_foam" type="glossentry" href="g_foam.xml"/>
 <keydef keys="g_gizmo" type="glossentry" href="g_gizmo.xml"/>
 <keydef keys="g_lathe" type="glossentry" href="g_lathe.xml"/>
 <keydef keys="g_lye" type="glossentry" href="g_lye.xml"/>
 <keydef keys="g_marseille" type="glossentry" href="g_marseille.xml"/>
 <keydef keys="g_offenbach" type="glossentry" href="g_offenbach.xml"/>
 <keydef keys="g_shampoo" type="glossentry" href="g_shampoo.xml"/>
 <keydef keys="g_sodium_stearate" type="glossentry" href="g_sodium_stearate.xml"/>
 <keydef keys="g_surfactant" type="glossentry" href="g_surfactant.xml"/>
 <keydef keys="g_thingamajig" type="glossentry" href="g_thingamajig.xml"/>
 <keydef keys="g_whatchamacallit" type="glossentry" href="g_whatchamacallit.xml"/>
 <keydef keys="g_widget" type="glossentry" href="g_widget.xml"/>
</map>

DITA refresher

  • keys: symbolic name that links an element to a file path
  • keydef: element used to define the key of an element
  • keyref: indirect link based on keys
  • conkeyref: indirect transclusion based on keys

<keydef keys="g_aleppo" type="glossentry" href="g_aleppo.xml"/>

DITA refresher

  • keys: symbolic name that links an element to a file path
  • keydef: element used to define the key of an element
  • keyref: indirect link based on keys
  • conkeyref: indirect transclusion based on keys

<term keyref="g_aleppo"/>

DITA refresher

  • keys: symbolic name that links an element to a file path
  • keydef: element used to define the key of an element
  • keyref: indirect link based on keys
  • conkeyref: indirect transclusion based on keys

<term conkeyref="topic_key/element_id"/>
SOAP.dita
├─c_SOAP.xml
├─t_SOAP.xml
└─r_SOAP.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE map PUBLIC "-//OASIS//DTD DITA Map//EN" "map.dtd">

<map>

 <title>SOAP example map</title>

 <mapref href="Glossary/m_SOAP_glossary.ditamap"/>

 <topicref href="c_SOAP.xml"/>
 <topicref href="t_SOAP.xml"/>
 <topicref href="r_SOAP.xml"/>

</map>
SOAP.dita
├─c_SOAP.xml
├─t_SOAP.xml
└─r_SOAP.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE concept PUBLIC "-//OASIS//DTD DITA Concept//EN" "concept.dtd">

<concept id="c_SOAP" xml:lang="en-US">

 <title>THING hygiene</title>
 <shortdesc>Your THING has very strict hygiene requirements.</shortdesc>

 <conbody>
  <ul>
   <li>You shall never expose your THING under bright light.</p>
   <li>You shall regularly cleanse your THING using SOAP.</p>
   <li>Never feed your THING after midnight.</p>
  </ul>
 </conbody>

</concept>
SOAP.dita
├─c_SOAP.xml
├─t_SOAP.xml
└─r_SOAP.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE task PUBLIC "-//OASIS//DTD DITA Task//EN" "task.dtd">

<task id="t_SOAP" xml:lang="en-US">

 <title>Cleansing a THING</title>
 <shortdesc>Use SOAP to properly cleanse your THING.</shortdesc>

 <taskbody>
  <steps>
   <step>
    <cmd>Rub the SOAP on the THING</cmd>
   </step>
   <step>
    <cmd>????</cmd>
   </step>
   <step>
    <cmd>PROFIT</cmd>
   </step>
  </steps>
 </taskbody>

</task>
SOAP.dita
├─c_SOAP.xml
├─t_SOAP.xml
└─r_SOAP.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE reference PUBLIC "-//OASIS//DTD DITA Reference//EN" "reference.dtd">

<reference id="r_SOAP" xml:lang="en-US">

 <title>SOAP ingredients</title>
 <shortdesc>SOAP is the preferred medium for cleansing a THING and satisfying
  its hygienic requirements.</shortdesc>

 <refbody>
  <section>
   <ul>
    <li>Water</li>
    <li>Olive oil</li>
    <li>Palm kernel oil (copra oil)</li>
    <li>Vegetable glycerin</li>
   </ul>
  </section>
 </refbody>

</reference>

Introducing:

Interim Glossaries

Doc

intGloss

Gloss

SOAP.dita
├─c_SOAP.xml
├─t_SOAP.xml
├─r_SOAP.xml
└─r_IntGloss.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE reference PUBLIC "-//OASIS//DTD DITA Reference//EN" "reference.dtd">

<reference id="SOAP_intGloss" xml:lang="en-US">

 <title>Reference title</title>

  <refbody>
   <section><!--SOAP-->
    <term id="SOAP">SOAP</term><term conkeyref="IntGloss/SOAP"/>
   </section>
   <section><!--THING-->
    <term id="THING">THING</term><term conkeyref="IntGloss/THING"/>
   </section>
 </refbody>

</reference>
SOAP.dita
├─c_SOAP.xml
├─t_SOAP.xml
├─r_SOAP.xml
└─r_IntGloss.xml
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE map PUBLIC "-//OASIS//DTD DITA Map//EN" "map.dtd">

<map>

 <title>SOAP example map</title>

 <mapref href="Glossary/m_SOAP_glossary.ditamap"/>

 <topicref href="c_SOAP.xml"/>
 <topicref href="t_SOAP.xml"/>
 <topicref href="r_SOAP.xml"/>

 <topicref href="r_IntGloss.xml" processing-role="resource-only" keys="IntGloss"/>

</map>
SOAP.dita
├─c_SOAP.xml
├─t_SOAP.xml
├─r_SOAP.xml
└─r_IntGloss.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE concept PUBLIC "-//OASIS//DTD DITA Concept//EN" "concept.dtd">

<concept id="c_SOAP" xml:lang="en-US">

 <title><term conkeyref="IntGloss/THING"/> hygiene</title>
 <shortdesc>Your <term conkeyref="IntGloss/THING"/> has very strict
  hygiene requirements.</shortdesc>

  <conbody>
   <ul>
    <li>You shall never expose your <term conkeyref="IntGloss/THING"/>
     under bright light.</li>
    <li>You shall regularly cleanse your <term conkeyref="IntGloss/THING"/>
     using <term conkeyref="IntGloss/SOAP"/>.</li>
    <li>Never feed your THING after midnight.</li>
   </ul>
  </conbody>

</concept>

<term id="SOAP">SOAP</term>
<term id="THING">THING</term>
Cleansing a THING

Use SOAP to clean your THING.

  1. Rub the SOAP on the THING
  2. ????
  3. PROFIT


<task id="t_SOAP" xml:lang="en-US">

 <title>Cleansing a <term conkeyref="IntGloss/THING"/></title>
 <shortdesc>Use <term conkeyref="IntGloss/SOAP"/> to properly cleanse
  your <term conkeyref="IntGloss/THING"/>.</shortdesc>

 <taskbody>
  <steps>
    <step>
     <cmd>Rub the <term conkeyref="IntGloss/SOAP"/>
      on the <term conkeyref="IntGloss/THING"/></cmd>
    </step>
    <step>
     <cmd>????</cmd>
    </step>
    <step>
     <cmd>PROFIT</cmd>
    </step>
  </steps>
 </taskbody>

</task>

<term id="SOAP">Marseille soap</term>
<term id="THING">Gizmo</term>
Cleansing a Gizmo

Use Marseille soap to clean your Gizmo.

  1. Rub the Marseille soap on the Gizmo
  2. ????
  3. PROFIT


<task id="t_SOAP" xml:lang="en-US">

 <title>Cleansing a <term conkeyref="IntGloss/THING"/></title>
 <shortdesc>Use <term conkeyref="IntGloss/SOAP"/> to properly cleanse
  your <term conkeyref="IntGloss/THING"/>.</shortdesc>

 <taskbody>
  <steps>
    <step>
     <cmd>Rub the <term conkeyref="IntGloss/SOAP"/>
      on the <term conkeyref="IntGloss/THING"/></cmd>
    </step>
    <step>
     <cmd>????</cmd>
    </step>
    <step>
     <cmd>PROFIT</cmd>
    </step>
  </steps>
 </taskbody>

</task>

Doc

intGloss

Gloss

Doc

intGloss

Gloss

SOAP.dita
├┬t_SOAP.xml
│├─c_SOAP.xml
│└─r_SOAP.xml
├┬t_SHAMPOO.xml
│├─c_SHAMPOO.xml
│└─r_SHAMPOO.xml
├─r_IntGloss.xml
└─m_SOAP_glossary.xml

<task id="t_SHAMPOO" xml:lang="en-US">

 <title>Cleansing a <term keyref="g_widget"/></title>
 <shortdesc>
  Use <term keyref="g_shampoo"/> to properly cleanse your
  <term keyref="g_widget"/>.
 </shortdesc>

  <taskbody>
   <steps>
     <step>
      <cmd>Choose a cleansing method</cmd>
       <choices>
         <choice>
           Rub the <term keyref="g_shampoo"/> on the
            <term keyref="g_widget"/>
         </choice>
         <choice>
           Else it gets the hose again
         </choice>
       </choices>
     </step>
   </steps>
  </taskbody>

</task>

Docs

Doc_progress

Glossary

Doc_progress

Schematron

ISO Schematron of 2006 (ISO/IEC FDIS 19757-3)

  • Validation rules
  • Quick fixes

Doc

intGloss

Gloss

Doc

intGloss

Gloss

ProTip:

Let XSLT handle the synch

But that's not all!

How about some list automation?

Reuse content

Reuse effort

Reuse ideas

💖Glossary💖

Slides and materials on github

XSLT on W3C and w3schools

schematron.com
SOAP_logo

Got feedback? bring it on!

https://db4rr.github.io
